Description

Product Description：

Name：ALS-10 Ambient light sensor

Type：ALS-10

※ Product Feature

l Imported high-precision illuminance sensor with high measurement accuracy, fast response and good interchangeability

l Waterproof enclosure with IP65 protection

l Multiple ranges are available to ensure accuracy and resolution

l Voltage, current, RS232, RS485 and other output interfaces for easy system integration

l Perfect input and output protection mechanism to ensure stable operation of the transmitter

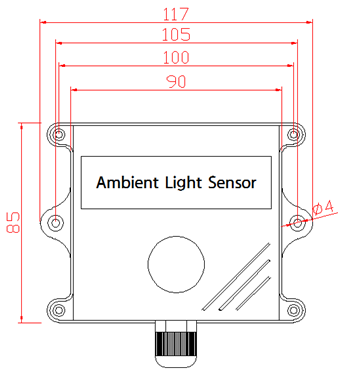

※ Dimensions

※ product selection

ALS-10

Code 1:

Measurement

range

0-5000LUX

0-10000LUX

0-20000LUX

0-100000LUX

0-200000LUX

Code 2:

Output

RS485

0-2V

4-20mA

※ Technical Parameter

Measurement parameter

Response time is less than 0.3 second

Measurement accuracy：±5%;

Protection level：IP65. Customizable outdoor waterproof.

Default cable length: 1 meter (can be customized)

Outer size ：117*85*41（mm）

Environment:

Working temperature range: -40~85℃

Input:

Working voltage 9-30V/DC DC
